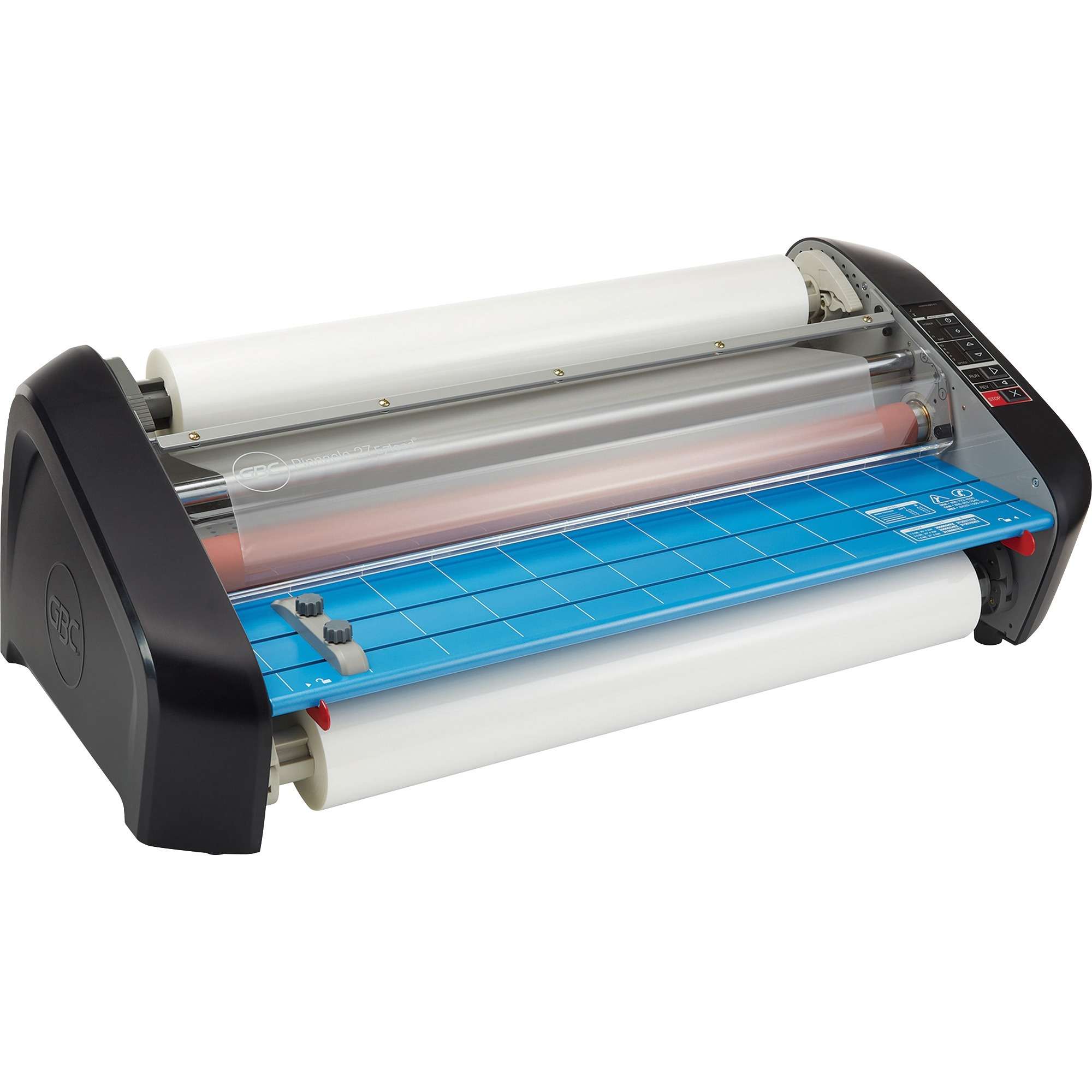

GBC HeatSeal Pinnacle 27 EZ Load Thermal Roll Laminator – 27″ Lamination Width – 3 mil Lamination Thickness – 14.3″ x 35.5″

General Information
Manufacturer: ACCO Brands Corporation
Manufacturer Part Number: 1701720EZ
Manufacturer Website Address: http://www.acco.com
Brand Name: GBC
Product Line: EZload
Product Name: HeatSeal Pinnacle 27 EZ Load Thermal Roll Laminator
Marketing Information:

Pinnacle 27 Ezload Roll Laminator laminates documents up to 27″ wide at 12′ per minute. It is ideal for banners and other continuous feed applications. Innovative Accutherm heating system provides consistent heating and allows you to laminate either Nap 1 or NAP II Roll Film. Ezload film-loading technology allows quick and easy film setup. Easy-to-use control panel features a standby switch, footage counter integrated with a temperature-ready indicator, and power-on LED indicators. Laminator is compatible with 1.0 mil to 3.0 mil NAPI (High Melt) or NAPII (Low Melt) Ezload Film. It features a 6 minute warm-up time, auto-shutoff and an auto-shutoff disengaging switch, built-in trimmer in the back of machine, tray table with safety shutoff, attached film idler bar for easy film loading, LED power and ready lights with audible alert. cUL approved.

More from the Manufacturer

Packaged Quantity: 1
Product Type: Hot Laminator
Technical Information
Processing Method: Hot
Maximum Lamination Width: 27″
Minimum Lamination Thickness: 1 mil
Maximum Lamination Thickness: 3 mil
Minimum Warm-up Time: 6 Minute
Maximum Warm-up Time: 9 Minute
Speed: 12 ft/min
Features:

• Trimmer
• Temperature Adjustment
• Auto Shutoff
• Variable Speed
• Standby Mode
• LED Interface

Controls/Indicators
Controls:

Standby Switch

Status Indicators:

• Ready Light LED Indicator
• Power-on LED Indicator

Physical Characteristics
Product Color: Gray
Height: 14.3″
Width: 35.5″
Length: 21″
Miscellaneous
Certifications & Standards:

UL

Application/Usage:

• Banner
• Poster
• School

Recycled: No
Assembly Required: No
Country of Origin: Taiwan
